Description

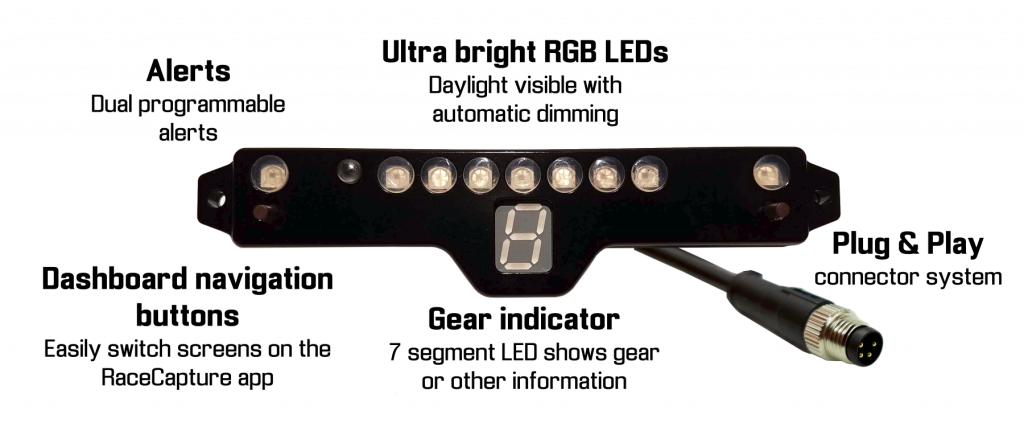

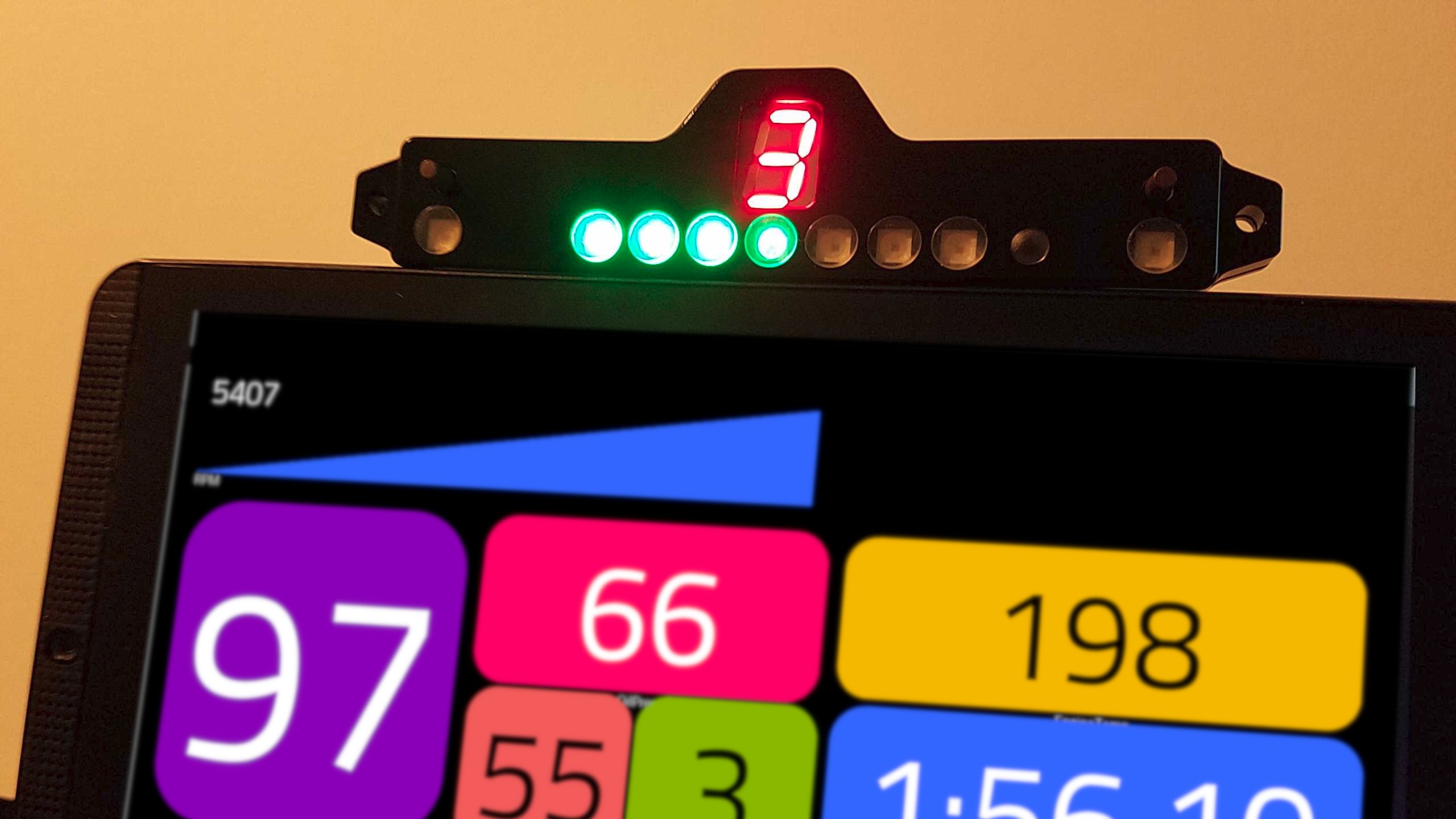

ShiftX3 adds an ultra-bright sequential shift light, twin alerts, and a 7 segment LED display for your RaceCapture system

Features

Ultra bright, daylight-visible RGB LEDs

ShiftX3 includes 7 ultra-bright daylight-visible RGB LEDs that will be sure to grab your attention!

Configure color, segment length based on RPM, and flashing pattern.

Twin RGB Alert LEDs

Two ultra-bright RGB Alert LEDs flanking the display can be configured to trigger on any sensor value.  You can customize color and flashing pattern for multiple threshold levels!

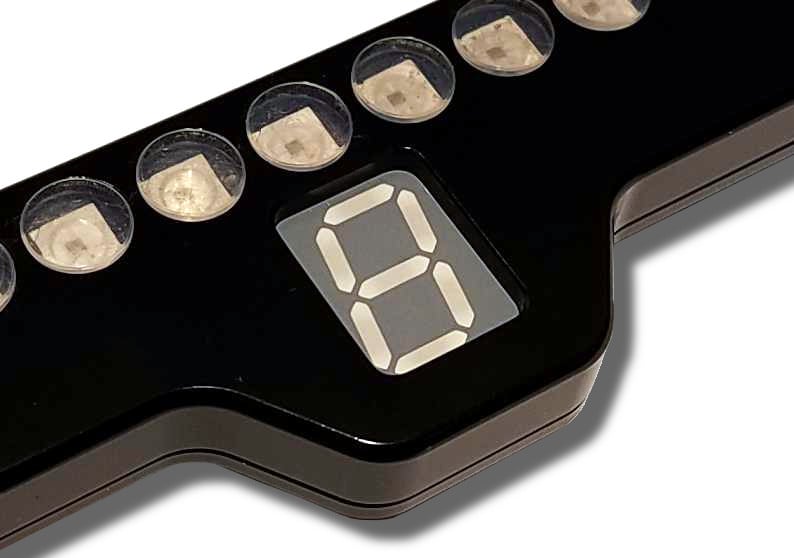

7 Segment Display for Gear or other channel

Use the 7 segment display to indicate current gear, or any other information you want to display.

Left / Right Navigation buttons for switching dashboard screens

Automatic dimming for night racing

A light sensor is included to automatically dim the LEDs and display for comfortable low-light operation.

Plug and Play CAN bus connection

No splicing, soldering, crimping – it just connects together with our plug and play connector system!

To connect with your plug and play RaceCapture or PodiumConnect system, we recommend the following parts:
* CAN1/CAN2 splitter
* Power+CAN extension cable (pick the length that works for your installation)
* Inline Terminator (place at the end of the CAN cable, near ShiftX3)

For previous generation, non plug and play RaceCapture systems, we recommend:

* Inline terminator (place at the end of the CAN cable, near ShiftX3)
* Device power pigtail

Use these to hard-wire to the CAN2 connection of your RaceCapture system. See the installation guide for more details.

Fully Customizable through Lua scripting

Our powerful Lua scripting lets you fully customize ShiftX3’s behavior.  Our convenient presets lets you choose a pre-made script that will get you started quickly!

See the installation guide for full details
