-40 to 150C Linear temperature sensor with plug and play harness

Description

The Autosport Labs Linear Temperature Sensor offers a linear response of 10mv/C for easy calibration with a simple conversion formula.

Only ground, 5v, and output connections are required, with no pullup resistor needed – similar to other active sensors. The sensor is suitable for fluids such as oil, coolant and water.

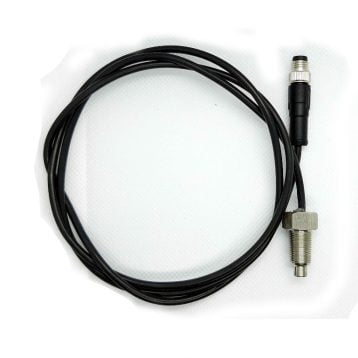

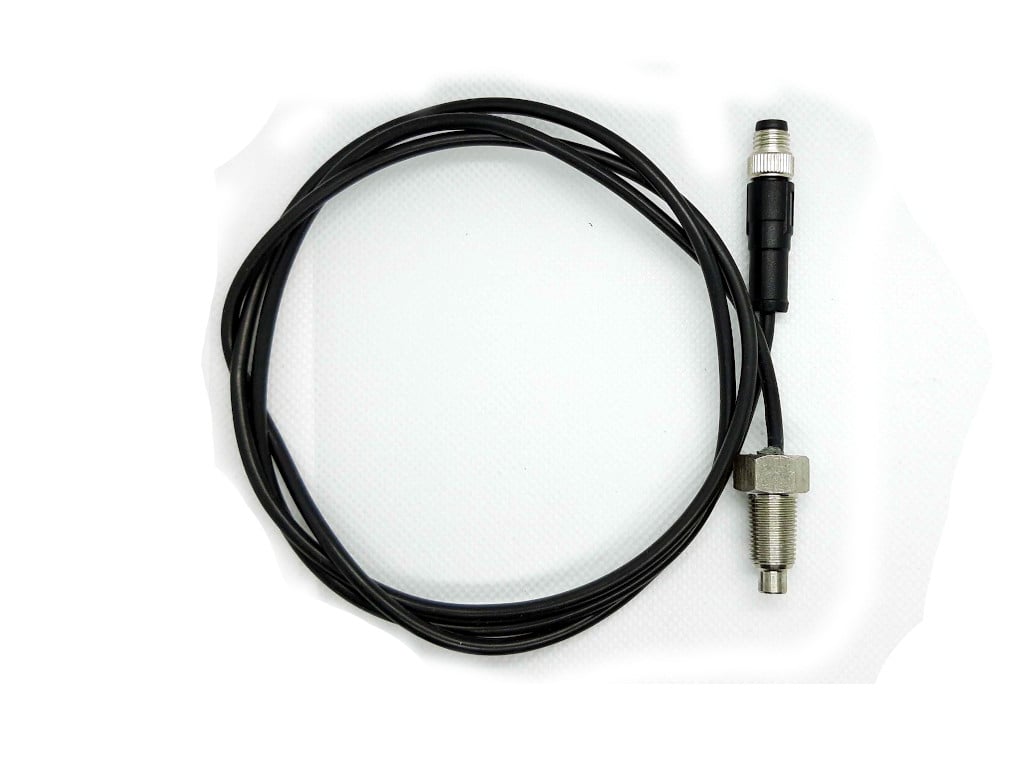

Provided with M8 plug and play harness connector.

Mechanical

• 1 Meter cable length

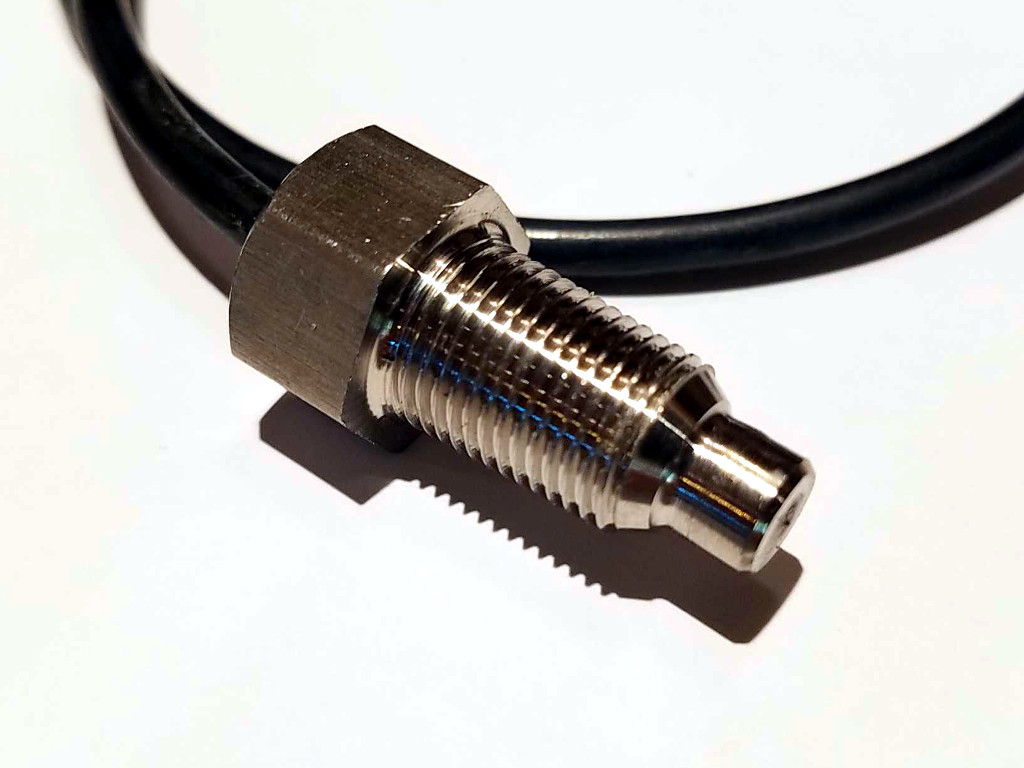

• 1/8″ NPT fitting
• Body: Stainless Steel
• 13mm (1/2″) hex head

Electrical

• Voltage supply: 3-5V
• Pull-up resistor: None (Active element)
• Operational temperature range: -40 to 150C
• Calibration: Linear response 10mv/C; 0.5V at 0 degrees C
• M8 Pinout:
  • Pin 4 : signal
  • Pin 1: Ground
  • Pin 3: 5V
• Wiring color codes:
  • Green: Ground
  • Red: 3-5V
  • Yellow: Signal Output

Full Harness Specifications
